Design a board
Available since v3.1.0
Design mode#

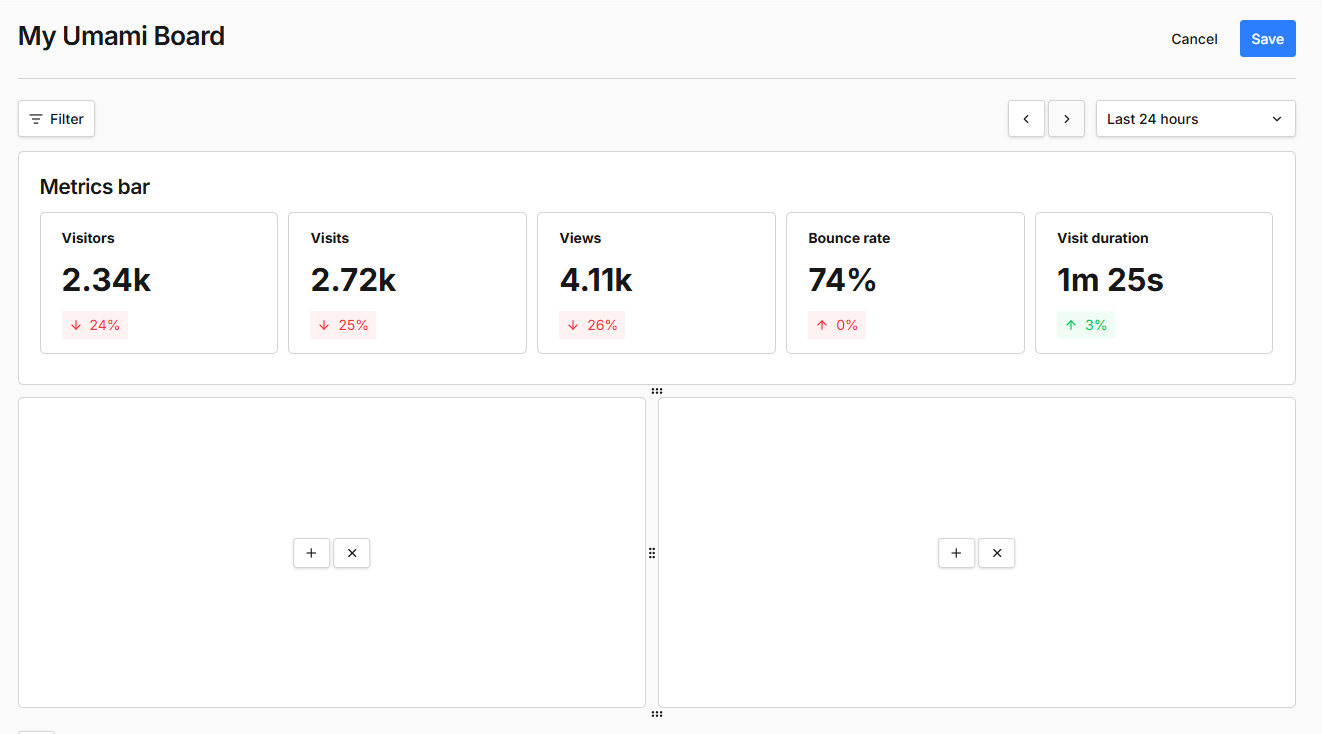

Open a board and click the Design button to enter design mode. In design mode you can add rows, adjust columns, and place components.
Add rows and columns#

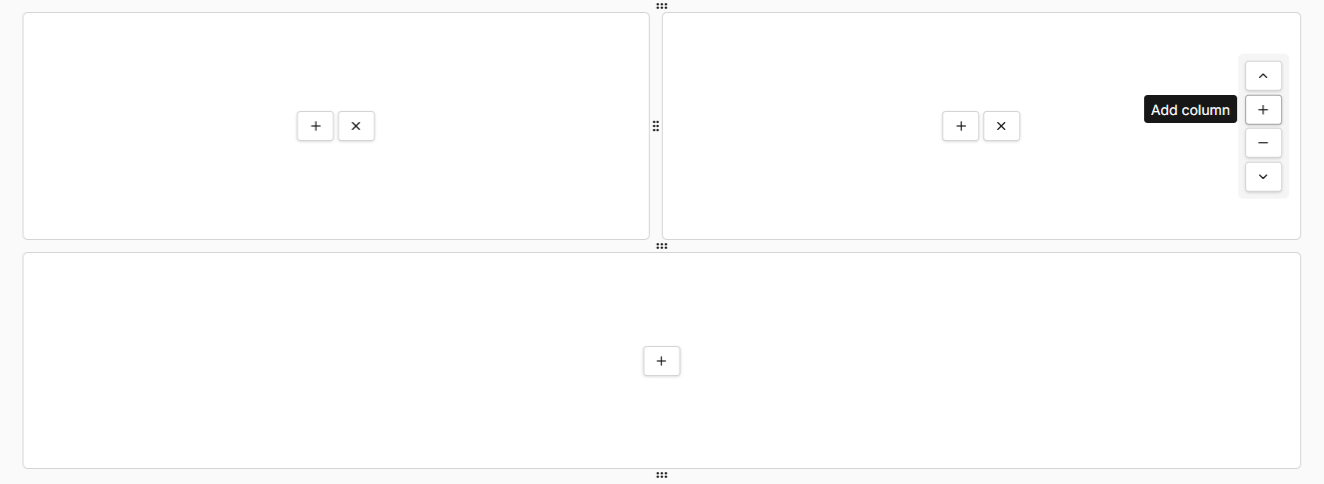

Click the Add row button to insert a new row. Each row can hold up to 4 columns. Click the Add column button within a row to split it further.
Add components#

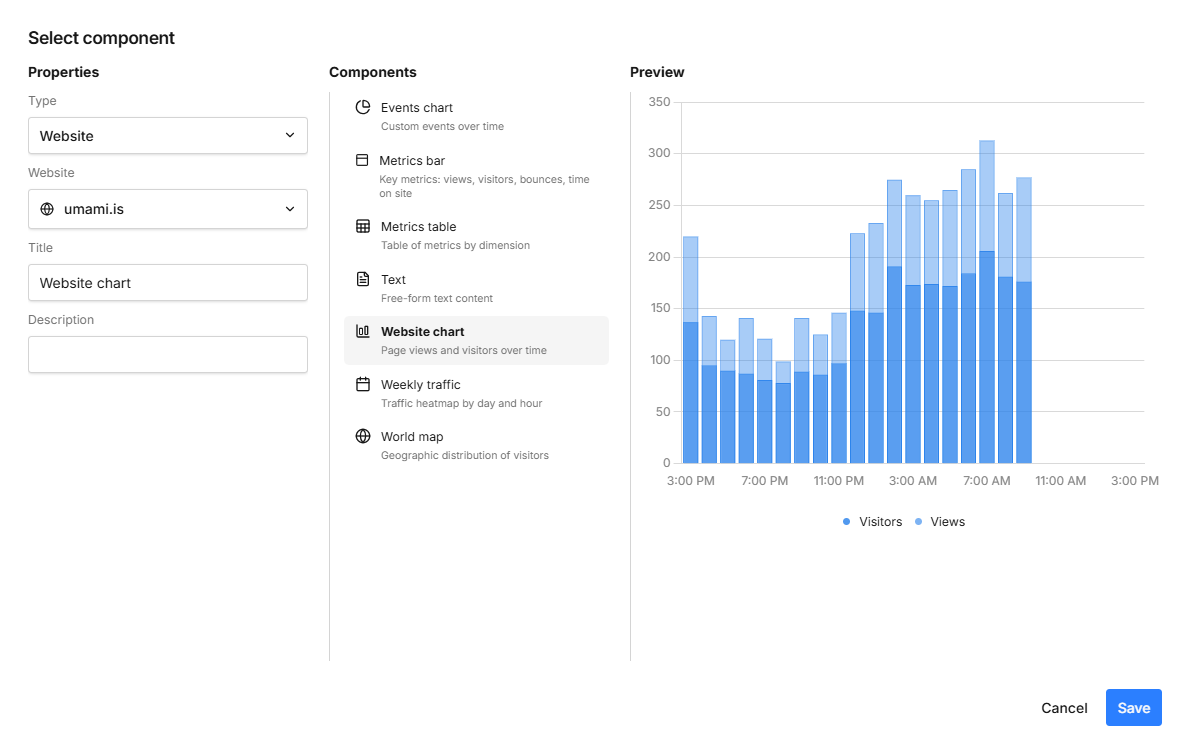

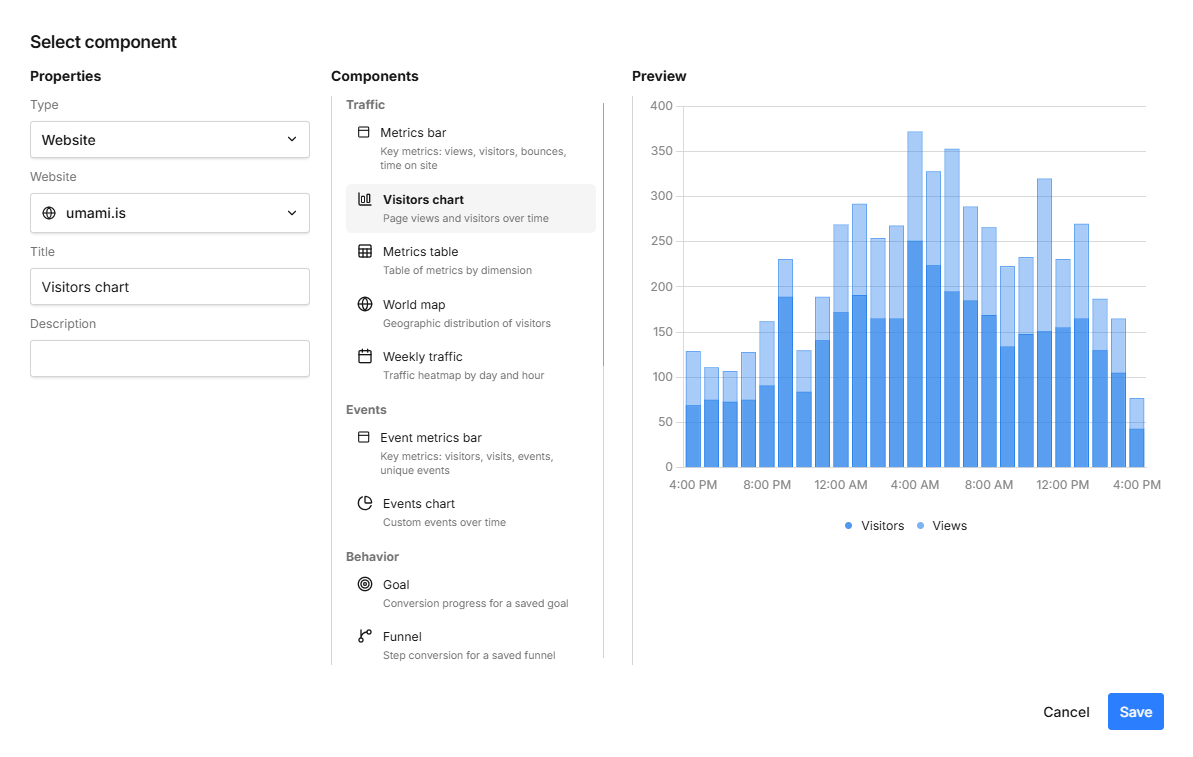

Click the Select Component button to open the component picker. Select a component type and configure its settings, then click Save to place it.
Components#
| Component | Group | Description | Board types |
|---|---|---|---|
| Metrics bar | Traffic | Key metrics: views, visitors, bounces, time on site. | All |
| Visitors chart | Traffic | Page views and visitors over time. | All |
| Metrics table | Traffic | Table of metrics by dimension. | All |
| World map | Traffic | Geographic distribution of visitors. | All |
| Weekly traffic | Traffic | Traffic heatmap by day and hour. | Website only |
| Event metrics bar | Events | Key metrics: visitors, visits, events, unique events. | Website only |
| Events chart | Events | Custom events over time. | Website only |
| Goal | Behavior | Conversion progress for a saved goal. | Website only |
| Funnel | Behavior | Step conversion for a saved funnel. | Website only |
| Realtime metrics bar | Realtime | Live views, visitors, events, and countries. | Website only |
| Realtime chart | Realtime | Live visitors and page views by minute. | Website only |
| Active users | Realtime | Current visitors online. | Website only |
| UTM | Growth | List and pie chart for one UTM parameter. | Website only |
| Revenue metrics bar | Revenue | Revenue summary: total, AOV, ARPU, orders, and customers. | Website only |
| Revenue chart | Revenue | Revenue over time. | Website only |
| Revenue metrics table | Revenue | Revenue breakdown by source or location. | Website only |
| Text | Content | Free-form text content. | All |
Components marked Website only require a website data source. On mixed boards, each component has its own source selector, so these components become available when you choose a website as the component's source.
The Goal, Funnel, UTM, Realtime, Revenue, and Event Metrics components are available since v3.2.0.
Resize rows and columns#
Row heights and column widths are resizable by dragging the dividers between them.
